Start by selecting [WinPE Builder] from the [Utilities] menu.
Microsoft Windows ADK is required to build the Windows PE based boot environments.
Deployment Tools and Windows Preinstallation Environment (Windows PE) are necessary to create boot environment.
Welcome to the Windows PE Boot Environment Builder.
Click on [Next].
Choose Windows PE kit
Specify the Windows PE toolkit needed for the installed operating system by clicking the appropriate radio button. The 32-bit version of Windows PE boot environment can be used on 64-bit host.
The information of a specific Windows PE toolkit can be displayed.
Click on [Next].
Add Device Drivers
Specify device driver(s) to include in the boot environment.
Network and storage device drivers included in the current system are detected and listed on the left pane. Click on [Load INF file] to add a driver by selecting INF file if the driver is not listed.
After selecting a driver to add, click on [==>] to include the driver in [Embedded driver(s)]. To exclude a driver from [Embedded driver(s)], select the driver and click on [<==]
.
Click [Next].
Set Environment
Specify the language, keyboard type, time zone and/or screen resolution for the Windows PE environment by selecting from the drop-down menu.
Click [Next].
Specify Boot Environment
Select [ISO Image] to create an ISO image file in the specified location. The created ISO file may be burned to DVD media at a later time.

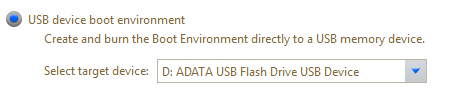

Select [USB device boot environment] to create boot environment on a USB memory device. The USB media currently connected to the PC may be selected. All data on the selected USB media device will be erased.
Click on [Next].

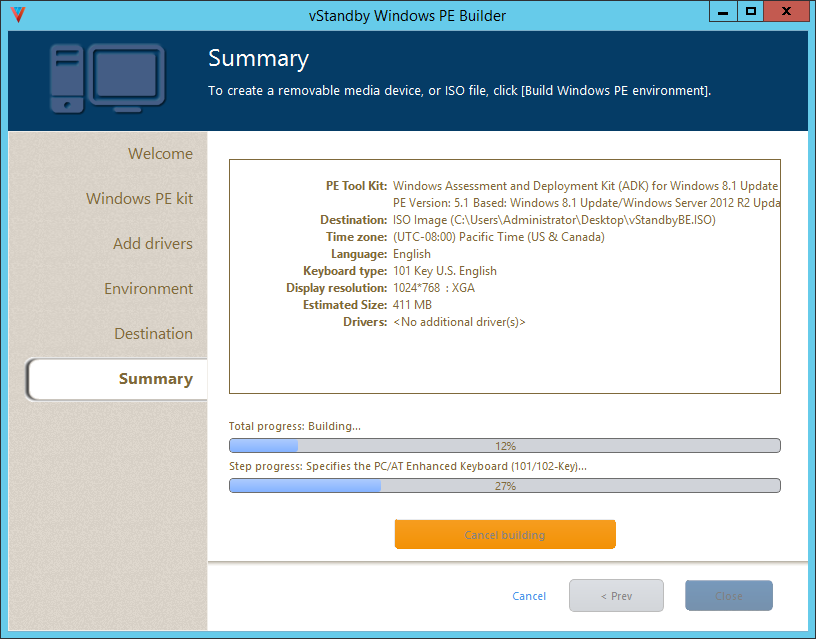

Summary
Please review the configured settings.
Click [< Prev] to make changes to previous settings. Click on a node to go back to a specific page.
Click on [Build Windows PE environment] to display the confirmation message. Click on [OK] to start building Windows PE environment.
Progress bars are shown in the window.

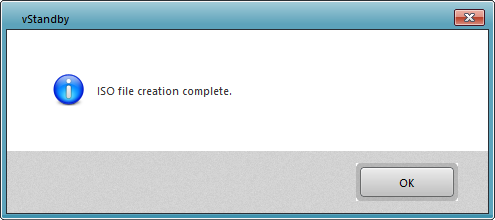

When boot environment creation completes, the following message is displayed.
Click on [OK] to close the window.
